Xiansheng Liu1,2,3, Jürgen Schnelle-Kreis2, Brigitte Schloter-Hai2, Lili Ma 1, Pengfei Tai4, Xin Cao2,3, Cencen Yu1, Thomas Adam2,5, Ralf Zimmermann2,3

School of Environment, Nanjing Normal University, Nanjing 210023, China
Joint Mass Spectrometry Center, Cooperation Group Comprehensive Molecular Analytics, Helmholtz Zentrum München, Neuherberg 85764, Germany
Joint Mass Spectrometry Center, Chair of Analytical Chemistry, University of Rostock, Rostock 18059, Germany
Geomatics College, Shandong University of Science and Technology, Shandong, Qingdao 266590, China
Bundeswehr University Munich, Neubiberg 85577, Germany

Received: June 12, 2019
Revised: September 11, 2019
Accepted: September 14, 2019

Download Citation: ||https://doi.org/10.4209/aaqr.2019.06.0301

  • Download: PDF

Cite this article:

Liu, X., Schnelle-Kreis, J., Schloter-Hai, B., Ma, L., Tai, P., Cao, X., Yu, C., Adam, T. and Zimmermann, R. (2019). Analysis of PAHs Associated with PM10 and PM2.5 from Different Districts in Nanjing. Aerosol Air Qual. Res. 19: 2294-2307. https://doi.org/10.4209/aaqr.2019.06.0301


  • The characteristic of particle PAH in different functional areas were monitored.
  • The BaPTEQ and BaPMEQ potencies were assessed to estimate potential impact.
  • The ILCR value of children-adolescents was higher than that of adults.
  • It is necessary to pay more attention to the relative area in Nanjing.


Nanjing has areas with different degrees of pollution and is therefore predestined for the analysis of particle phase polycyclic aromatic hydrocarbons (P-PAHs) in different functional areas and their correlation with the latter. The functional sites include a background area (BGA), an industrial area (IDA), a traffic area (TFA), a business area (BNA) and a residential area (RDA), where parameters such as PAH composition, content, carcinogenic and mutagenic potencies were analyzed. The results revealed increasing P-PAH contents (PM2.5, PM10) in the following order: BGA (14.02 ng m–3, 38.45 ng m–3) < BNA (16.33 ng m–3, 44.13 ng m–3) < TFA (17.13 ng m–3, 48.31 ng m–3) < RDA (21.11 ng m–3, 61.03 ng m–3) < IDA (50.00 ng m–3, 93.08 ng m–3). Thereby, the P-PAH content in the industrial area was significantly higher than in the other functional zones (P < 0.01). Furthermore, the gas phase PAH concentrations were also estimated by the G/P partitioning model and the total PAH toxicity was assessed applying toxicity equivalent factors (∑BaPTEF) and mutagenicity equivalent factors (∑BaPMEF). Finally, the incremental lifetime cancer risk (ILCR) value of children and adolescents in Nanjing was higher than that of adults.

Keywords: Particle phase PAHs; Different functional areas; Toxicity assessment; Incremental lifetime cancer risk.


It is well-known, that the primary particles are emitted directly as liquids or solids from sources such as biomass burning, incomplete combustion of fossil fuels, volcanic eruptions, and wind-driven or traffic-related suspension of road, soil, and mineral dust, sea salt, and biological materials (Abdel-Shafy et al., 2016; Du et al., 2017). Ambient particulate matter (PM) is a growing concern worldwide due to its associations between elevated concentrations and increased incidences of cardiopulmonary disease (Ning et al., 2010), including chronic obstructive pulmonary disease (Zhang et al., 2017). According to the Global Burden of Disease study, fine particulate matter (PM2.5) is the seventh largest important death risk factor in the world and the fourth largest important death risk factor in China (Cohen et al., 2005; Lim et al., 2012).

Many studies suggest that organic carbon constituents may play a significant role in PM-induced health effects (Li et al., 2003). Recently, polycyclic aromatic hydrocarbons (PAHs) have brought great environmental concerns as they are ubiquitous in the ambient air and the presence of PAH directly affects humans, especially to vulnerable groups such as the elderly and children (Brook et al., 2010; Beelen et al., 2014; Wang et al., 2017a; Wright et al., 2018). In addition, some PAH-compounds, such as benzo[a]pyrene and benz[a]anthracene, are well known carcinogens (Nisbet et al., 1992; Goldstein, 2001; Li et al., 2009). So it is important to investigate the PAHs in the atmosphere and reduce human exposure to these toxic chemicals.

EPA Carcinogenicity Risk Assessment Endeavor Work Group has verified the carcinogenicity classifications in 1994 (U.S. EPA, 1994), indicateing that BaA, BbF, BkF, BaP, Chr, DahA and IcdP are considered to be probable human carcinogens. It has been found that the PAHs are carcinogenic and that BaP is the most serious (Garban et al., 2002) among the listed carcinogens. Moreover, some special PAHs are mutagenic (Durant et al., 1996) associated with some health effects, i.e., pulmonary diseases (DeMarini et al., 2004). Many studies have attempted to estimate the carcinogenic potency of PAHs using BaP equivalent concentration, but less attention was given to mutagenicity. Therefore, in the studies, mutagenicity should be given similar attention when attempting to estimate the carcinogenic potency of PAHs.

In recent decades, with the rapid increase in energy consumption, public health has been a matter of great concern to scientists and policy makers in China. The PAHs occur in the atmosphere as complex mixtures of congeners with different molecular weights: Lighter PAHs (2–3 aromatic rings) are almost exclusively present in the vapor phase, whereas PAHs with higher molecular weights (≥ 4 rings) are almost completely adsorbed to the particulate matter (Cheruiyot et al., 2015; Manoli et al., 2016). Meanwhile, the carcinogenic contributions of particle phase PAHs is much higher than those of gas phase PAHs. The current research focuses mainly on particulate matter. Nevertheless, in order to take the concentration of PAHs fully into account, this study estimated the concentration of PAHs in the gas phase by using the gas/particle partitioning model (Xie et al., 2013; Gao et al., 2015) and focused primarily on the higher molecuar weight PAHs (4–6 rings). Due to the fact that the atmospheric pollution is a persistent problem in Nanjing (Wang et al., 2006), numerous studies were conducted in the Nanjing area, such as sources of PAHs in the atmosphere, analysis of concentration distribution of particulate matter, meteorological factors and the seasonal trends of indoor fine particulate matter (Wang et al., 2006; He et al., 2014; Shao et al., 2017; Wang et al., 2017b). However, very few studies have considered the different functional areas (Jiang et al., 2018; Simayi et al., 2018) and the distribution characteristics of PAHs in the atmospheric particulate matter for a comprehensive comparison and analysis, one example for PAHs is the study of Manoli et al. (2016), who compared the PAH levels between traffic and urban background. Anotherpurpose of the study was to support future epidemiology and health impact research. Therefore, the carcinogenic and mutagenic potencies were assessed as well to estimate their potential impact on human health. In addition, a lifetime lung cancer risk assessment in relation to different groups was carried out.


Sampling Area and Site Description

The sampling sites were located in Nanjing in eastern China in the heartland of the drainage area of the lower reaches of the Yangtze River, with longitudes and latitudes of 118°22′–119°14′ and 31°14′–32°36′, respectively. Its area is 4,736 km2 with 140 km in length (west–east direction) and 80 km in width (north–south direction). The mean annual temperature and precipitation are 15.7 ℃ and 1106.5 mm, respectively (Xu et al., 2007). The four seasons are distinct, with damp conditions throughout the year, very hot and muggy summers, cold and damp winters, and in between, spring and autumn are of reasonable length. A detailed description of the sampling areas is listed in Table 1.

Table 1. Characteristic of the sampling sites in Nanjing.

Sampling Collection

Sampling was carried out in Nanjing at five sites during 47 days. High volume air samplers (KC-1000, flow rate 1.05 m3 min1) with glass fiber filters (GFF) were used to collect particle phase PAHs in PM10 and PM2.5, respectively. All filters have been baked at 450°C for 4 h in a muffle furnace (MF-2.5-10A, Shanghai) and stabilized for 24 h under constant temperature (21°C) using a dryer. Samples were collected in triplicate every 24 h. All filters were weighed before and after sampling and finally stored at –1°C until analysis.

Analytical Procedure

For the PAH analysis, brown glass tubes were cleaned three times with tap water and ethyl alcohol prior to use. Impurities were removed with a clean brush used only for this study. Each filter was cut into small pieces and extracted by Soxhlet with 200 mL dichloromethane at 46°C for 16 h. Rotary evaporator (R-201, Shanghai, China) was adopted to purify the concentrated solution with water at 37°C. In order to reduce the loss, the extraction was concentrated altogether three times with dichloromethane in a flat bottom flask. The total extracts were subsequently transferred to alumina silica gel columns for purification, consisting of 3 cm alumina, 6 cm silica gel and 1 cm anhydrous sodium sulfate. Prior to purification, the alumina silica gel column has been washed for two times using a 20 mL 1:1 mixture of n-hexane and acetone. After the sample transfer, the bottom flasks have

been cleaned three times with dichloromethane. The eluted mixture from the column was brought to approximately 1 mL by rotary evaporator at 37°C. Finally, they were diluted with n-hexane to exactly 1 mL, sealed in vials and stored at –18°C before PAH analysis.

Determination of PAHs

PAH levels were determined by GC/MS according to previous studies (Xia et al., 2013; Wu et al., 2014) using the Agilent 7890A/5975MSD (Agilent, USA) with a J&W Scientific column DB-5MS (30 m × 0.25 mm ID × 0.25 µm film, Agilent, USA). The GC was running under following conditions: 1 min at 40°C, heated from 40°C to 200°C at a rate of 10°C min1 and heated from 200°C to 310°C at 5°C min1, then held at 310°C for 5 min. The sample was injected on a splitless mode at the injector temperature of 280°C. The EI-MS conditions were as follows: ion-source temperature, 230°C; ionizing voltage, 70 eV; scan range, m/z 40–350 amu; cycle time, 0.5 s. 10 PAHs were determined listed by the IARC as class 1, class 2A, 2B and class 3 (fluoranthene, pyrene, benz[a]anthracene, chrysene, benzo[b]fluoranthene, benzo[k]fluoranthene, benzo[a]pyrene, benzo[g,h,i]perylene, indeno[1,2,3-cd]pyrene and dibenz[a,h]anthracene), mainly associated to the particle-phase.

Prediction of Gas-phase PAH Concentrations

The semi-volatile organic compounds of PAHs encounter gas-particle phase distribution when transported in the atmosphere. In order to fully understand the concentration of PAHs in Nanjing, the concentration of PAHs in the gas phase was calculated by the gas/particle (G/P) partitioning theory (Pankow, 1994a, b). The theory was described in detail elsewhere (Xie et al., 2013; Gao et al., 2015; Xie et al., 2015), which was defined as follows:


where Kp,OM represents the absorptive G/P partitioning coefficient of each PAH. Kp is the G/P partitioning coefficient and fOM is the weight fraction of the absorptive OM phase in the total PM phase. F and A are a concentration of each PAH in the particle phase (ng m3) and a concentration of each PAH in the gas phase (ng m3). MOM and are the concentrations of the particle-phase OM (µg m3) and the average molecular weight (MW) of the absorbing OM phase (g mol–1). Referring to Xie et al., (2013),  is 200 g mol–1 and referring to Zhai et al., (2016), this work estimated that the MOM concentration was equal to the 50% of the PM concentration. R is the ideal gas constant (m3 atm K–1 mol) and T is the ambient temperature (K). ξOM and P0L are the mole fraction scale activity coefficient of each compound in the absorbing OM phase and vapor pressure of each pure compound.

Quality Control and Analysis

All procedures were strictly quality-controlled, with quality control and blank control samples added into the sequence in order to assess the data repeatability, and no significant contamination was found. Quantification of PAHs was standardized by the retention times and peak areas of the calibration standards. It was performed by the internal standard method using 2-fluoro-1,10-biphenyl and p-terphenyl-d14 (2.0 mg mL1; J&K Chemical, Beijing, China). The instruments were calculated using at least five standard concentrations covering the concentration of interest for ambient air work and the analytical precision, measured as the relative standard deviation, was < 10% (Liu et al., 2017a).

Data analysis was performed using the Statistical Package of the Social Sciences 18.0 (SPSS 18.0) Software for Windows (SPCC Co., 2001). For the mathematical statistics analysis, the one-way analysis of variance (ANOVA) and correlation analysis with Bivariate Correlations Analysis were completed. The relationships between the concentrations of compounds were subsequently explored by linear correlation analysis.

Data Processing

Coefficient of Divergence (CDjk)

Recent research shows that the intraurban spatial distributions of PM concentrations in some study areas are heterogeneous. Therefore, a coefficient of variation (CV) or a coefficient of divergence (CD) is used for the heterogeneous distributions of particulates to describe relative intra urban concentration heterogeneity (Wilson, et al., 2005). The CDjk method for identifying the differences of PAH composition profiles was described in detail elsewhere (Wongphatarakul, 1998), which was defined as follows:


where xij represents the average concentration for a chemical component i at site j, j and k represent two sampling sites, and p is the number of chemical components. If the value of CDjk approaches zero, the PAH composition in j and k is similar, and if it approaches one, it is significantly different (Wongphatarakul, 1998). Kong et al. (2012) found that if the value of CDjk is lower than 0.2, the source of the two sites is the same.

Diagnostic Ratios of PAH

The binary ratio method for PAH source identification was described in detail elsewhere (Ravindra et al., 2008), which involves comparing ratios of pairs of frequently found PAH emissions. The diagnostic ratio method can also characterize the diversity in PAH sources and distinguishing emissions (Venkataraman et al., 1994; Harrison et al., 1996; Ravindra et al., 2008).

Toxic and Mutagenic Equivalent Factors

The carcinogenic risk of a PAH mixture is often expressed by its BaP equivalent concentration (BaPTEQ) (Han et al., 2011). To normalize the toxicity of different PAHs in PM2.5 and PM10, it has been calculated by the equivalent mass concentration based on BaP and the value of toxic equivalency factors, TEFs (Table 2). Similarly, just with the replacement of TEF with MEF (Mutagenic Equivalency Factors), the mutagenicity related to BaP (BaPMEQ) was calculated as well.

Table 2. Abbreviations used for PAHs in this paper and carcinogenic and mutagenic potencies of PAHs (Nisbet and LaGoy, 1992; Malcom and Dobson, 1994; Durant et al., 1996).

And the BaPTEQ and BaPMEQ of the air were calculated according to Eqs. (5) and (6):


where Ci = concentration of PAH congener i; TEFi = the toxic equivalency factors (TEFs) of PAH congener i; MEFi = the mutagenic equivalency factors (MEFs) of PAH congener i. The toxicity assessment of PAHs was determined by benzo(a)pyrene, an equivalent for carcinogenicity (∑BaPTEF) and mutagenicity (∑BaPMEF).

In urban areas, the citizens were divided into three population groups according to the age and gender: children and adolescents (1–18 years), male (19–71.95 years) and female (19–77.06 years). Daily inhalation exposure level (E) for each population group was calculated as follows in Eq. (7):


where Ti = daily exposure time span in the ith area (for all groups of the urban area on one day: they spend the whole day in the urban area, thus n = 1, i = 1 refers to urban area, T1 = 1); BaPTEQi = B(a)P equivalent concentration of 10 PAHs in the ith area (ng m–3) (for all groups of urban area: n = 1, i = 1 refers to urban area); IR = inhalation rate (m3 day–1) (Table 3) (Xia et al., 2013; Lin, 2016; Zhang et al., 2019).

Cancer Risk Estimates

The incremental lifetime cancer risk (ILCR) of population groups in Nanjing caused by PAHs inhalation exposure was calculated based on Eqs. (8) and (9):


where LADD = Lifetime Average Daily Doses; Ci =∑BaPTEQ (mg m–3); EF = the exposure frequency (day year–1); ED = exposure duration (year); BW = body weight (kg); AT = average lifespan for carcinogens (day).

ILCR = the incremental cancer risk of the inhalation exposure (dimensionless); q = the cancer slope factor for BaP inhalation exposure [a lognormal distribution with a geometric mean of 3.14 (mg kg–1 day–1)–1 and a geometric standard deviation of 1.80] (Chen and Liao 2006).


Pollution Level of Particle PAHs (P-PAHs) in PM2.5 and PM10

Descriptive statistics for all valid observations of P-PAH concentration-ratios in PM2.5 and PM10 from 5 sites in Nanjing are summarized in Fig. 1. The average 24-h total P-PAH concentrations of PM2.5 and PM10 were in the ranges of 10.95–59.10 ng m–3 and 35.38–97.33 ng m–3, respectively. Among the 5 sites, the average mass of carcinogenic PAHs (C-PAHs) including BaA, Bbf, Bkf, Bap, Icdp and Daha, at the Business area reached the highest proportion (61.19% for PM2.5 and 53.57% for PM10, respectively), apparently affected by many area emission sources distributed around the business district. However, the highest average 24-h C-PAH concentrations appeared in the industrial area, with 20.13 ± 5.39 ng m–3 for PM2.5 and 36.31 ± 5.35 ng m–3 for PM10. The results suggest that C-PAHs may be related with the coal combustion and coal processing industries.

Fig. 1. The proportion of each P-PAH in different functional areas in PM2.5 and PM10.Fig. 1. The proportion of each P-PAH in different functional areas in PM2.5 and PM10.

Among the 10 P-PAHs analyzed, the average concentrations of middle molecular weight PAHs (Flu, Pyr, BaA, Chr), and high molecular weight PAHs (BbF, BkF, BaP, Icdp, Bghip, Daha) (Yang et al., 1998) ranged from 4.72 to 24.91 ng m3 and 5.07 to 23.08 ng m3, respectively, for PM2.5. The corresponding values were 14.63 to 54.77 ng m3, and 21.49 to 44.95 ng m3, respectively, for PM10.

A one-way ANOVA was also used to test the significant differences using the BaP and total P-PAH data. This analysis suggests that the BaP levels were not statistically different for each site (ANOVA, p > 0.05) while clear regional trends were observed for the total P-PAH levels (p < 0.01). Meanwhile, there was a significant correlation between BaP and total P-PAHs in PM2.5 (R = 0.713, p < 0.01) and the correlation of total P-PAH in PM2.5 and PM10 was also significant (R = 0.783, p < 0.01).

Spatial Variation

Fig. 2 shows the box plot of the Spearman rank correlation coefficients of each P-PAH and the total P-PAHs between five sites. In general, the medians of the correlation coefficients for all P-PAHs in PM2.5 and PM10, respectively, were approximately below 0.50 and 0.55. This means that the spatial correlations between all sites are not strong in Nanjing, especially for TFA in terms of PM2.5 and BGA in terms of PM10. In order to measure the spread of the data points for two datasets, mass concentrations characterized between different sites for j against k are also presented in Fig. 2 Low CDjk values (< 0.2) have been shown to indicate a high level of homogeneity between sites, while CDjk values larger than 0.2 indicate heterogeneous sites (Wilson et al., 2005). As can be seen, the median PM2.5 - CDjk values ranged from 0.41 to 0.53 and PM10 - CDjk values ranged from 0.27 to 0.37 suggesting a heterogeneous distribution of PM2.5 and PM10 in the 5 sites, indicating significant differences in PAH composition.

Fig. 2. Box plots of Spearman rank correlation coefficients (left) and coefficient of divergence (CDjk, right) based on individual P-PAHs and the total P-PAHs concentrations between five different measurement sites. The box plots indicate the maximum, 75th percentile, the median, 25th percentile, and the minimum of all the data, respectively.Fig. 2. Box plots of Spearman rank correlation coefficients (left) and coefficient of divergence (CDjk, right) based on individual P-PAHs and the total P-PAHs concentrations between five different measurement sites. The box plots indicate the maximum, 75th percentile, the median, 25th percentile, and the minimum of all the data, respectively.

For the comparison of P-PAHs between PM2.5 and PM10, the diagrams characterized by scatter plots of P-PAHs component mass concentrations between PM2.5 and PM10 for j against k are also presented in Fig. 3. The CDjk values of BGA, RDA, BNA, TFA and IDA were 0.523, 0.566, 0.603, 0.584, and 0.426, being also higher than 0.2. It can be concluded that the P-PAHs compositions at the sites in PM2.5 and PM10 are different, indicating the influence of different sources.

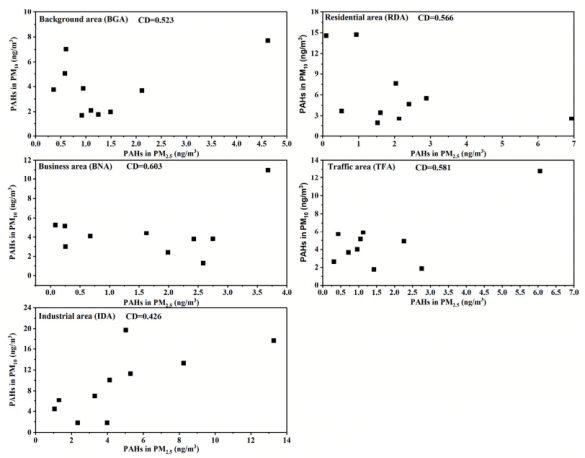

Fig. 3. Comparison of average concentrations of P-PAHs between PM2.5 and PM10 for different sites in Nanjing.

Source Identification and Source Contribution Assessment

Molecular diagnostic ratios, firstly used in organic geochemistry, have been a convenient approach to help identifying possible emission sources. Yunker et al. (1996) has used fluoranthene/pyrene and phenanthrene/anthracene to ascertain emission sources in sediment samples. Simoneit et al. (2004) and Andreou et al. (2008) have used this method to investigate the origin of organic species in the atmosphere.

Studies have revealed that the ratio of Flu/(Flu + Pyr) is lower than 0.40 for the petroleum source, and higher than 0.50 for biomass and coal combustion, and between 0.4 and 0.5 for fuel emissions caused by the exhaust (Li et al., 2006a; Ravindra and Grieken, 2008). Kavouras et al. (2001) has found the value of Icdp/(Icdp + BghiP) ratio is between 0.35 and 0.7 for diesel emissions. For both PM2.5 and PM10, the ratios of P-PAHs values for the background site and other sites are shown in Fig. 4.

Fig. 4. Diagnostic ratios for Flu/(Flu + Pyr), BaA/(BaA + Chr) and Icdp/(Icdp + BghiP) of the five sites for PM2.5 and PM10 in Nanjing.Fig. 4. Diagnostic ratios for Flu/(Flu + Pyr), BaA/(BaA + Chr) and Icdp/(Icdp + BghiP) of the five sites for PM2.5 and PM10 in Nanjing.

As shown in Fig. 4, different ratios of compounds indicate different sources. However, the main source of pollution is the combustion of fossil fuels for PM2.5 and PM10. It is clear that the main sources are diesel emissions in BGA and pyrolytic sources in RDA, BNA, TFA and IDA. However, there is some difference between PM2.5 and PM10. It can be found that the main source is focusing on traffic emissions for PM10. And several sources of ambient PM (Laden et al., 2000; Hoek et al., 2002) are under investigation, especially of interest are emissions from combustion sources with focus on traffic emissions (Mudway et al., 2004; Peters et al., 2004).

Meanwhile, the isomer ratio of a more reactive PAH to a stable PAH, such as BaA/Chr, can be employed to illustrate whether the air masses collected are fresh or aged (Ding et al., 2007). The values of the BaA/Chr were 1.32, 0.67, 10.74, 2.22 and 4.03 for BGA, RDA, BNA, TFA and IDA in PM2.5, respectively. The high values were found in BNA, TFA and IDA, indicating relatively little photochemical reaction and a major impact from local sources. However, the low values were found in BGA and RDA, meaning more degradation happened in situ or during the process of air transport (He et al., 2014).

Predicted Gas-phase PAH Concentrations

The total PAH concentration data is the sum of the concentration of P-PAHs and gaseous PAHs (G-PAHs). The calculation of G-PAHs is presented in detail in Section 1.5. According to Zhai et al. (2016), the average gas-phase fraction of each PAH was calculated and listed in Table 4. By comparison, the total predicted PAH concentrations found in this study are consistent with those reported by Li et al. (2006b) and Gao et al. (2015), who found that the total PAH concentrations in PM2.5 ranged from 10 to 40 ng m–3 in December 2001 in Guangzhou, and 7.1 to 72.6 ng m–3 in November–December 2009, respectively.

Table 4. Average predicted g-PAH profile based on the P-PAH data sets of the five sampling sites in Nanjing (unit: ng m–3).

Health Risk of PAHs

Carcinogenic and Mutagenic Potencies

As shown in Fig. 5, the BaPTEQ and BaPMEQ values were computed applying the modified lists of TEFs and MEFs (Table 2) in all five investigated sites. There were higher carcinogenic risks of total PAHs in Nanjing, with average values of 3.14 ± 1.27 ng m–3 for PM2.5 and 8.23 ± 1.55 ng m–3 for PM10, respectively. European countries have been established the target annual mean values of BaP to range between 0.7 and 1.3 ng m–3 (Ballesta, et al., 1999) and it has been suggested a concentration of 0.1 ng m–3 of BaP as a health-based guideline in ambient air (Boström et al., 2002). The value of the ∑BaPTEQ in Nanjing has exceeded the standard value of 1 ng m–3, indicating that many of the more toxic compounds are threatening human health in the urban city, nowadays. For mutagenic potencies, the average concentrations of ∑BaPMEQ were 3.14 ± 1.85 ng m–3 for PM2.5 and 11.23 ± 2.70 ng m–3 for PM10, being higher than those at the Chinese background sites (1.26 ± 1.75 ng m–3 for PM2.5 and 1.41 ± 1.98 ng m–3 for PM10) (Wang et al., 2015).

Fig. 5. ∑BaPTEQ and ∑BaPMEF concentrations of PAHs in PM2.5 and PM10 at the five sites.Fig. 5. ∑BaPTEQ and ∑BaPMEF concentrations of PAHs in PM2.5 and PM10 at the five sites.

As PAHs can be classified on different standard levels, this study has classified the total PAHs according to their number of aromatic rings to quantify the BaPTEQ and BaPMEQ. It can be found that the BaPTEQ of total PAHs with 4, 5 and 6 rings are dominant in both PM2.5 and PM10 Among all functional sites, 5-rings account for absolutely high ratios, up to nearly 80% or more. This may indicate that the high-numbered ring PAHs are the predominant compounds in PM.

Regarding the different functional areas, the values of ∑BaPTEQ and ∑BaPMEQ in the backgrond area (BGA) were the lowest. Meanwhile, the high molecular weight compounds (6-ring compounds) have not been detected as frequently in the background site, TEF values of low-numbered ring compounds are lower than the high-numbered rings, and MEFs only belong to special PAHs. Certainly, this is also related to inconspicuous anthropogenic sources and more plants in the background site. For IDA and BNA, it should be noticed that 5-ring and 4-ring PAHs exhibit the highest mass percentages when compared with other sites. Ravindra et al. (2006) indicated that the major sources for BaP, BbF, BghiP and Icdp are gasoline vehicles.

Lung Cancer Risk of Assessment

With the average equivalent BaP concentration of total PAHs in PM2.5 and PM10 (Fig. 5) and the variables of exposure parameters (Table 3), the value of the lifetime carcinogenic risk for children and adolescents, males and females in Nanjing has been calculated (Table 5).

Table 3. Exposure parameters for different age and gender groups of Nanjing city.

Table 5. LADD and ILCR for different groups of Nanjing city.

As shown in Table 5, the LADD of children and adolescents were approximately 1.6 times and 1.7 times higher than that of males and females. This may be due to the fact that children’s and adolescents' breathing rate is greater than that of adults, while their bodyweight is lower. Furthermore, the ranking of ILCR in decreasing order basically was children and adolescents, males and females, indicating children and adolescents being a population group sensitive to health risks by pollutants (Martí-Cid et al., 2008). So, there are security risks for humans, especially children and adolescents, although the values are within an acceptable range (10–4–10–6 made by U.S. EPA (1989)).

Comparison with Other Studies

According to previous study (Wang et al., 2006), there has been a decrease in P-PAH concentration in Nanjin since 2001, based on the average between the five study sites (Table 6). The P-PAHs concentrations in PM2.5 were similar to those analyzed by Ningbo (Mo et al., 2018) in winter and in spring in Shanghai (Liu et al., 2017b). In comparison, the total P-PAH concentrations found in this study are lower than those reported by Simayi et al. (2018), who also analyzed the P-PAHs in different functional areas. However, the average concentrations of ∑ P-PAHs in PM2.5 and PM10 were approximately 7 and 14 times higher than those in the background of China (Wang et al., 2015) and in Hong Kong (Guo et al., 2003). When comparing the P+G PAHs, values are significantly lower in Nanjing than in Guangzhou (Yang et al., 2010), indicating that the G-PAHs are also noteworthy. Therefore, in the future, gas-phase samples should be collected for the analysis. It is worth noting that the values were higher as compared to those of the urban centre at the same sampling period in Taiwan (Fang et al., 2005) and much higher than those of Nanjing in summer (Sun et al., 2016).

Table 6. Comparison of the four factors analysed in the present study and with values reported in the literature.

Similarly, compared to the study by Wang et al., (2006), the average concentrations of ∑BaPTEQ for PM2.5 and PM10 decreased, similar to Jinhua (Mo et al., 2018) and Shanghai (Liu et al., 2017b). However, they were approximately 4 and 9 times higher than those in the backgrounds of China (Wang et al., 2015) and much higher than those of Nanjing in summer (Sun et al., 2016). The average concentrations of ∑BaPMEQ for PM2.5 and PM10 were approximately 2 and 8 times higher than those in the backgrounds of China. In PM2.5, the ∑BaPMEQ concentration was similar to that in Venice-Mestre (Masiol et al., 2012). The calculated ILCR average values for PM2.5 and PM10 in Nanjing were also higher than those in Thessaloniki (Northehern Greece) (Manoli et al., 2016) but lower than those in Xiamen (Zhang et al., 2018).


In this manuscript, daily ambient samples of particle PAHs were collected in Nanjing to examine chemical characteristics, regional variation, emission sources and the related carcinogenicity, mutagenicity and risks for human health. Total P-PAH concentrations ranged from 14.02 to 50.00 ng m–3 and from 38.45 to 93.08 ng m–3 in PM2.5 and PM10, respectively. Thereby, the main source of pollution was the combustion of fossil fuels. Furthermore, the gas necessary to pay more attention to children and adolescents, whose ILCR values were higher than those of adults.


We are very grateful to the anonymous referees and editor for their valuable suggestions which have helped to improve the paper. This research was supported by the National Natural Science Foundation of China (No. 41603114), Natural Science Foundation of Jiangsu Province (No. BK20161017) and Natural Science Foundation of the Higher Education Institutions of Jiangsu Province, China (No. 15KJD610004) and the China Scholarship Council (CSC) under the State Scholarship Fund (File No. 201706860028).
